3.35MWh Energy Storage Liquid-Cooled Solution

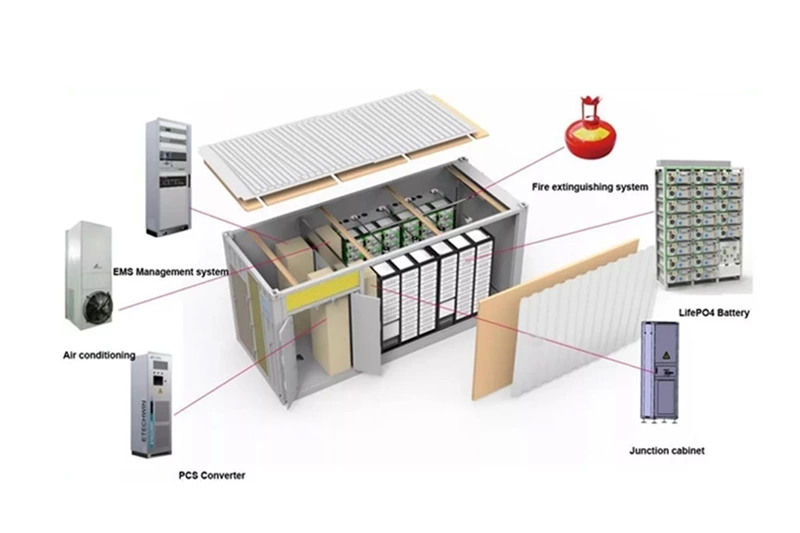

  • PACK+BMU:temperature acquisition, voltage acquisition, battery balancing
  • High voltage box+BCMU:rack information collection,status estimation, threshold protection
  • Current Combiner cabinet+BAMS:DC confluence, acquisition, storage, processing, battery information display, communication with PCS and EMS
  • BMS:Monitor, view and set PCS, batterysystem, air conditioner, fire hydrant and other operation data and fault data,record system charging and discharging data, process data, and generate reports
Enquiry Download

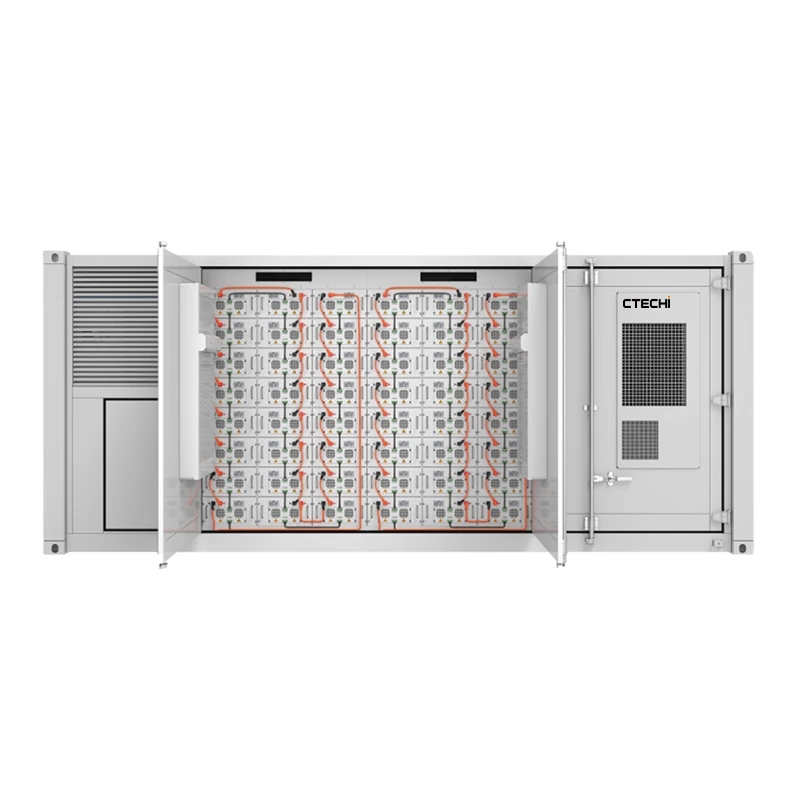

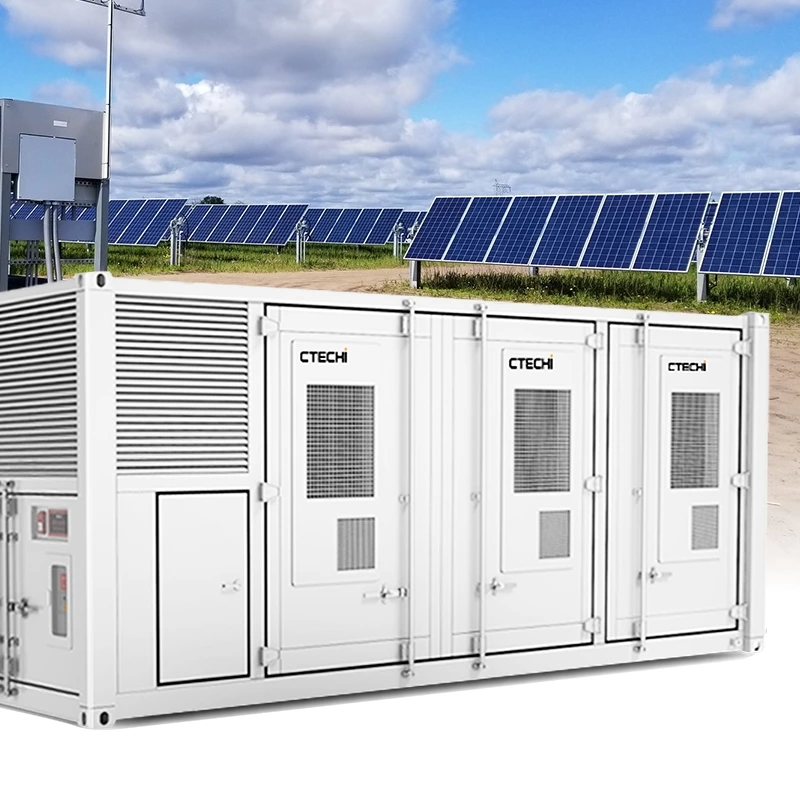

3.35MWh Energy Storage Liquid-Cooled Solution
3.35MWh Energy Storage Liquid-Cooled Solution
3.35MWh Energy Storage Liquid-Cooled Solution
3.35MWh Energy Storage Liquid-Cooled Solution
3.35MWh Energy Storage Liquid-Cooled Solution

Product Introduction

The 3.35MWh Energy Storage Liquid-Cooled Solution is an advanced battery energy storage system (BESS) designed to provide reliable, efficient, and scalable energy storage for a wide range of applications. Equipped with state-of-the-art liquid cooling technology, this solution ensures optimal thermal management, enhancing the overall safety, performance, and longevity of the system. Ideal for renewable energy integration, grid stability, and peak shaving, the system delivers cost-effective and sustainable energy solutions to meet the growing demands of modern energy infrastructure.

3.35MWh Energy Storage Liquid-Cooled Solution

Advanced Liquid Cooling Technology

The integrated liquid cooling system efficiently manages thermal performance, ensuring uniform temperature control across all battery modules. This feature reduces energy consumption, enhances battery life, and improves operational stability, even in extreme environments.

3.35MWh Energy Storage Liquid-Cooled Solution

High Energy Density and Scalability

With a capacity of 3.35MWh, this solution offers high energy density, enabling compact installations. Its modular design supports seamless scalability to meet various energy storage requirements.

3.35MWh Energy Storage Liquid-Cooled Solution

Enhanced Safety and Reliability

Built with robust safety mechanisms, including multi-layered protection against thermal runaway and intelligent monitoring systems, the solution ensures reliable operation and minimizes risks during long-term use.

3.35MWh Energy Storage Liquid-Cooled Solution

Smart Energy Management

The system features intelligent control and monitoring capabilities, allowing real-time data analysis, remote operation, and predictive maintenance. These functions optimize performance and reduce operational costs, ensuring a high return on investment.

Technical Data

If you have any questions during the browsing process, please feel free to contact us and communicate with us at any time.
Energy 3.35MWh
Configuration 9P416S
Cell Capacity 280Ah
Voltage Range 1040.0~1518.4V
Charge/Discharge Rate 0.5P
Weight ≤35T
Dimension(W*D*H) 20GP Container
Fire Extinguisher System Perfluorohexanone + Water Spray
Cooling Strategy Liquid Cooling
IP Rating IP55
Operating Temperature -30~55℃
Communication Interface MODBUS RTU/TCP
IEC104, IEC61850

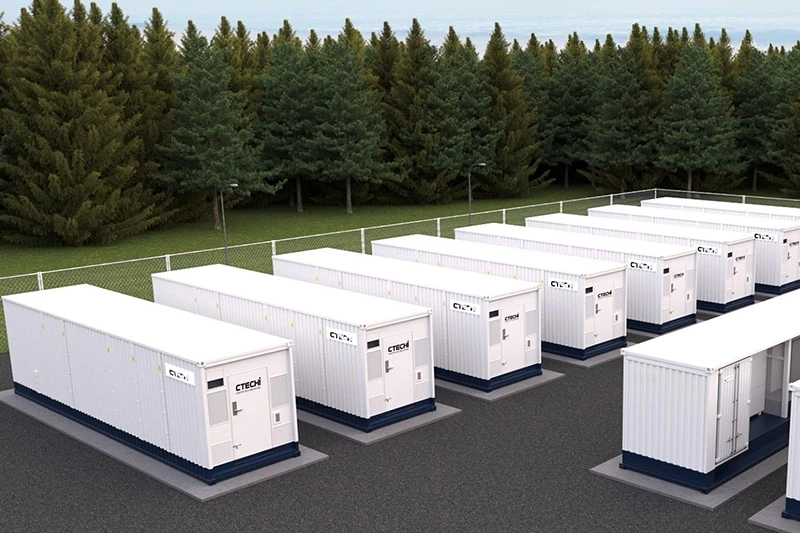

Our Gallery

Our products are adaptable to various scenarios, and we provide one-on-one remote assistance for seamless on-site installation.
3.35MWh Energy Storage Liquid-Cooled Solution
3.35MWh Energy Storage Liquid-Cooled Solution
3.35MWh Energy Storage Liquid-Cooled Solution
