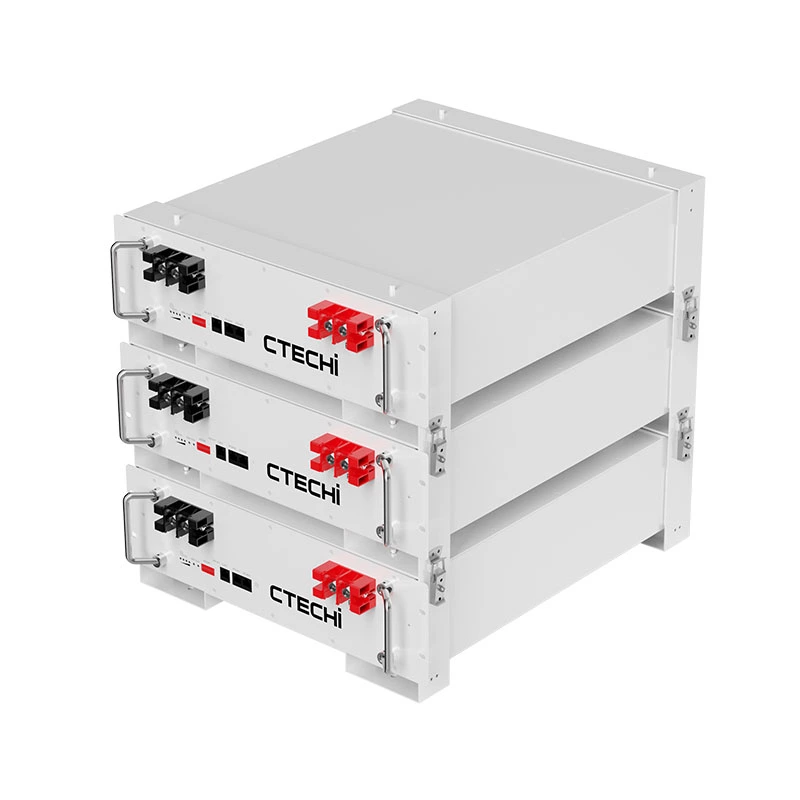

5Kwh 10Kwh 51.2V LiFePO4 Rack Battery Home Energy Storage Battery

  • Voltage:51.2V
  • Capacity:50Ah/100Ah/150Ah/200Ah
  • Energy:2.5KWH/5KWH/7.5KWH/10KWH
  • Dimensions (LxWxH):3U/4U/5U    440x480x134mm/440x480x146mm
  • Weight:24kg/45kg/68kg/96kg
  • Life Cycles:6000 Cycles
  • Enclosure Protection Rating:IP53
  • Operation Voltage:40-57.6VDC
  • Max.charging Voltage:54VDC
  • Max.charging and Discharging Current:100A-200A

Product Introduction

CTECHI’s 51.2V 5KWh-10KWh LiFePO4 Rack Battery is a reliable and expandable energy storage solution designed for both on&off grid-connected and off-grid solar systems. It caters to a wide range of applications, from residential to commercial, offering exceptional energy efficiency, longevity, and safety.
This modular battery system integrates seamlessly with popular inverters and smart home systems, enabling homeowners to maximize the use of their solar energy. Whether as an emergency power backup or to store daytime solar energy for nighttime use, this solution provides an economical and eco-friendly way to enhance energy independence.



5Kwh 10Kwh 51.2V LiFePO4 Rack Battery Home Energy Storage Battery

Modular Design for Scalability

This modular battery system supports up to 16 parallel connections, allowing maximum storage capacity to reach 160kWh. Its design enables easy scalability, ensuring seamless integration into growing energy needs for homes or businesses.

5Kwh 10Kwh 51.2V LiFePO4 Rack Battery Home Energy Storage Battery

Built-in Intelligent BMS

The built-in Battery Management System (BMS) provides multi-level safety features, including protection against overcharging, deep discharge, and overheating. It also ensures cell balancing and real-time monitoring of voltage and temperature for stable and reliable operation.

5Kwh 10Kwh 51.2V LiFePO4 Rack Battery Home Energy Storage Battery

High Performance & Longevity

Equipped with advanced LiFePO4 battery technology, the system boasts up to 98% energy efficiency and a longer lifecycle compared to traditional lithium batteries. It operates reliably across a wide temperature range, ensuring excellent performance in diverse climates.

Technical Data

If you have any questions during the browsing process, please feel free to contact us and communicate with us at any time.
Model No. RM2.5KWH RM5KWH RM7.5KWH RM10KWH
Voltage 51.2V
Capacity 50Ah 100Ah 150Ah 200Ah
Energy 2.56KWH 5.12KWH 7.68KWH 10.24KWH
Dimensions(LXWXH) 3U 3U/4U 3U/4U 5U
Weight 24kg 45kg 68kg 96kg
Life Cycles 6000 cycles
Enclosure Protection Rating IP53
Operation Voltage 37.5-54Vdc 40-57.6Vdc
Max. Charging Voltage 56Vdc 58Vdc
Max. Charging and Discharging Current 50A 100A 100A 200A
Storage Time/Temperature 5 months @25℃;3 months @35℃;1 month @45℃
Operation Temperature -20℃-60℃ @60±25% Relative Humidity
Storage Temperature 0℃-45℃ @60±25% Relative Humidity



Related Case

Our solutions help homeowners cut costs and ensure reliable backup power.
BESS power supply in villas 30KW 60KWH

BESS power supply in villas 30KW 60KWH

BESS power supply in hospitals 30KW 60KWH

BESS power supply in hospitals 30KW 60KWH

African residential energy storage  5KWh

African residential energy storage 5KWh

Ukraine residential energy storage  15KWh+10KW

Ukraine residential energy storage 15KWh+10KW

Commercial Battery Backup Solution

Commercial Battery Backup Solution

South American residential energy storage  5KWh+5KW

South American residential energy storage 5KWh+5KW
